Military and law enforcement armories manage thousands of small but critical weapon components. Springs, bolts, triggers, optics parts, magazines, and repair kits must remain organized, secure, and easy to retrieve. Vertical Lift Modules (VLMs) provide a high-density automated storage solution designed to keep weapon parts protected, tracked, and accessible.

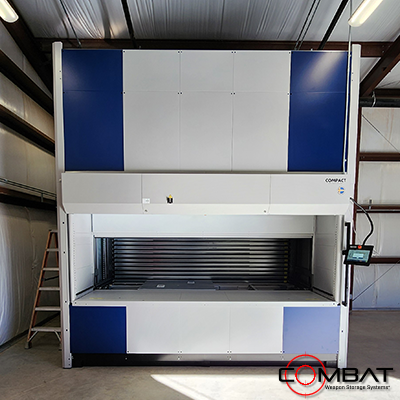

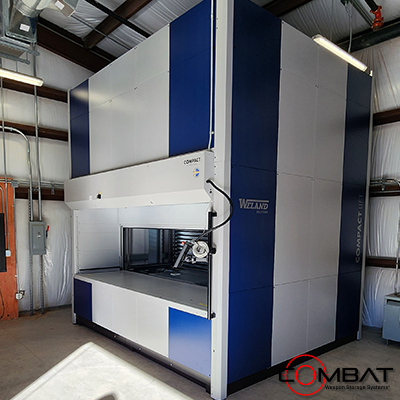

A vertical lift module uses an automated extractor to retrieve trays stored inside an enclosed cabinet. The system automatically delivers the correct tray to an ergonomic access opening, eliminating the need for personnel to search through shelves or bins. This improves efficiency, accuracy, and inventory control while maximizing valuable armory space.

Features

  • Automated extractor retrieves trays and delivers them to the operator

  • Vertical storage design maximizes ceiling height and reduces floor space usage

  • Enclosed cabinet design protects sensitive weapon components

  • Controlled access with badge readers, keypads, or biometric authentication

  • Adjustable trays with dividers for organized parts storage

  • Pick-to-light and digital indicators for accurate order picking

  • Barcode and RFID inventory tracking compatibility

  • Ergonomic access opening to reduce bending and reaching

  • Heavy-duty steel construction for demanding environments

  • Programmable control interface for quick item retrieval

Specifications

  • System Height: Approximately 10 ft to 40 ft depending on ceiling height

  • Unit Width: Approximately 6 ft to 14 ft depending on configuration

  • Unit Depth: Approximately 5 ft to 10 ft

  • Tray Load Capacity: 500 lbs to 2,200 lbs per tray

  • Tray Quantity: 20 to 80 trays depending on system height

  • Tray Width Options: Multiple widths available for different parts sizes

  • Extractor Speed: High-speed automated retrieval system

  • Power Requirements: Approximately 208–480V industrial power

  • Control Interface: Touchscreen or software-driven control panel

  • Safety Features: Safety light curtains, automatic door controls, emergency stops, and load sensors

  • Inventory Integration: Compatible with warehouse management and armory tracking systems

Efficient, Secure Weapon Parts Storage

Vertical lift modules provide a modern storage solution for managing weapon components in military and law enforcement environments. By combining automated retrieval, high-density storage, and advanced inventory control, these systems help organizations maintain secure, organized, and efficient parts storage.

When accuracy, accountability, and speed matter, vertical lift modules deliver a reliable solution for weapon parts management.

Maximize Storage Capacity

Weapon parts storage often requires large amounts of shelving and small bins that quickly consume valuable floor space. Vertical lift modules use the full height of the facility, storing trays vertically inside a compact footprint.

This allows armories, maintenance facilities, and logistics units to store thousands of parts in a single system while significantly reducing the amount of floor space required.

Secure Storage for Critical Components

Weapon components must be protected from unauthorized access and loss. Vertical lift modules feature enclosed cabinets and access-controlled retrieval openings to maintain security.

Systems can integrate with badge access, PIN codes, or biometric authentication to ensure that only authorized personnel can retrieve parts. Each transaction can also be logged to maintain accountability.

Faster Parts Retrieval

Maintenance and repair operations depend on fast access to the correct components. Vertical lift modules automatically retrieve and deliver the correct tray to the operator within seconds.

Personnel no longer need to walk through aisles or search through multiple storage bins. The system brings the correct tray directly to the access point, reducing retrieval time and improving maintenance efficiency.

Improved Inventory Control

Managing thousands of small weapon parts manually creates opportunities for lost inventory and inaccurate counts. Vertical lift modules can integrate with inventory management software, barcode scanners, and RFID systems to track parts in real time.

This allows armories and maintenance teams to maintain accurate records, monitor usage, and reduce inventory loss.
